How to configure Mail Merge

The Mail Merge feature can be a lifesaver if you want to make a letter, direct mail piece, invoice, proposal, or even a contract in Microsoft Word using data from your records in Salesforce. If you have created form letters, labels or envelopes in MS Word from a database or Excel file, Mail Merge for Salesforce works in a similar fashion.

At a high level, you install a Salesforce plugin for Microsoft Word, you create your template in Word and upload the template into so that it can be accessed using the “Mail Merge” button in you Activities History related list.

Mail Merge Button

Creating Mail Merge Templates

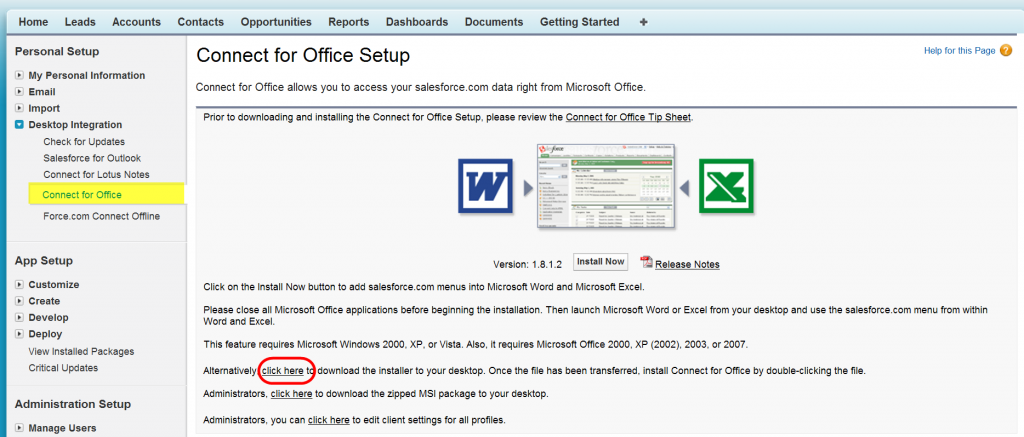

Install the Desktop Integration Plug In from Go to Setup > Personal Setup Desktop Integrations > Connect for Office

Download Mail Merge PlugIn

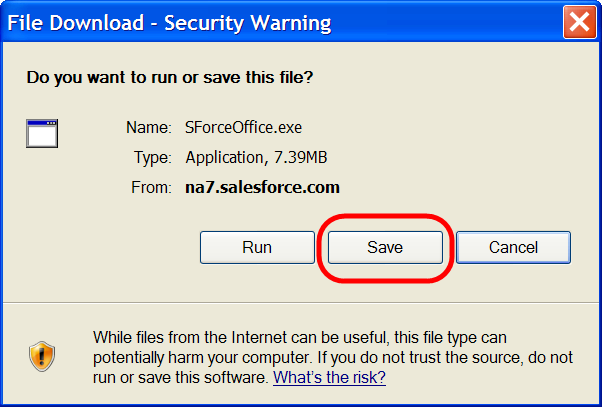

For reliability I prefer to use the link to download the installer locally.

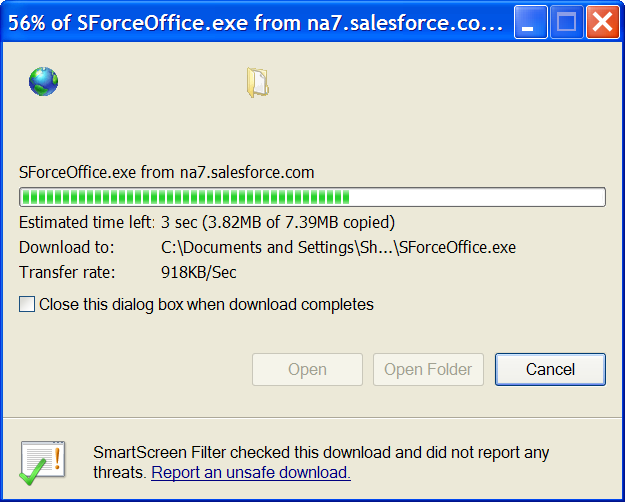

Download Plugin Local Download to Desktop

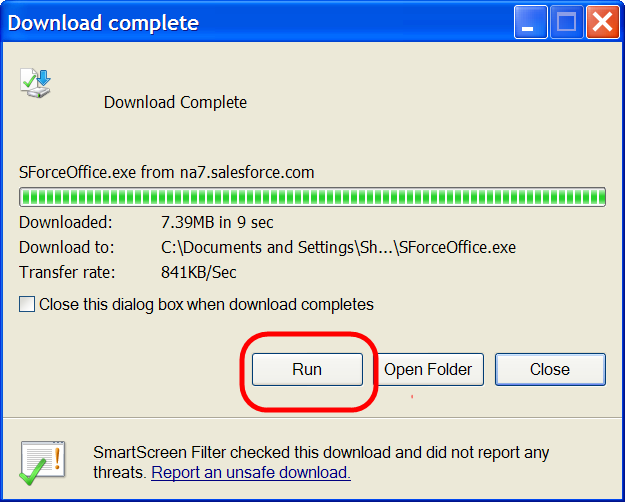

Shut down anything that could be considered part of the Microsoft “suite” – specifically MS Outlook and MS Word. Then run the plug-in:

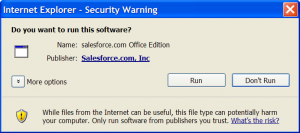

Run Installer Run Installer

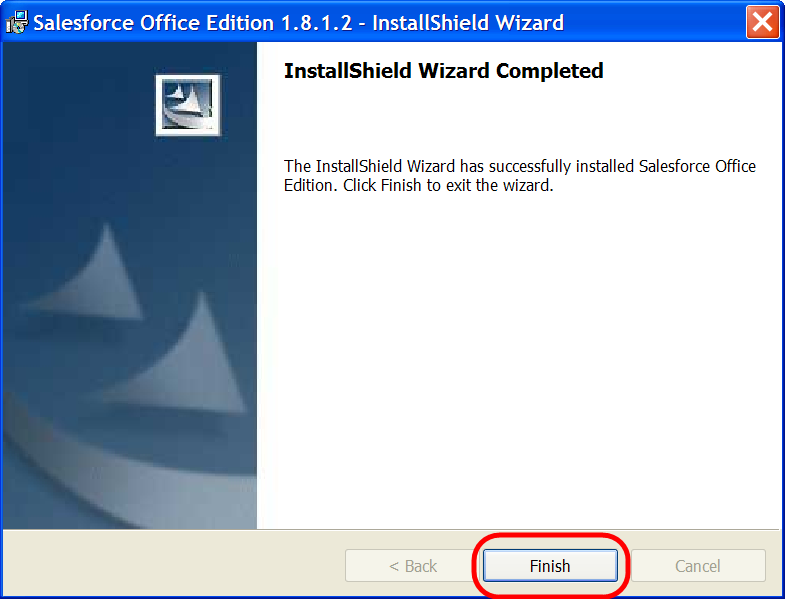

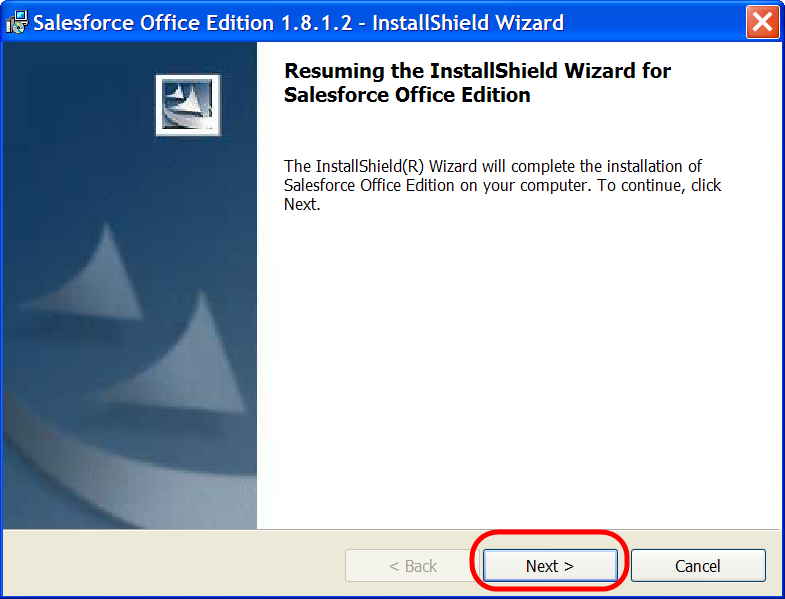

Continue Install Finish Install

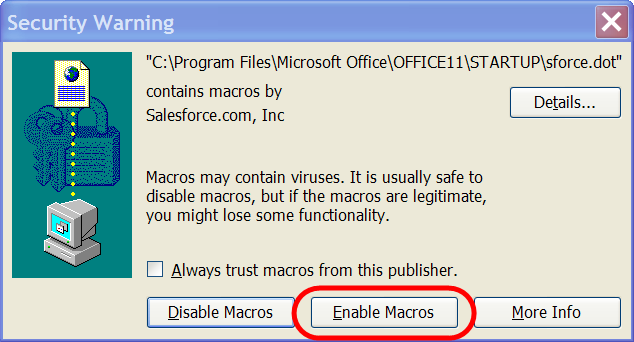

Start MS Word – you might get a message similar to the below:

Enable Macros

You should see a new set of tools in the toolbar of Word:

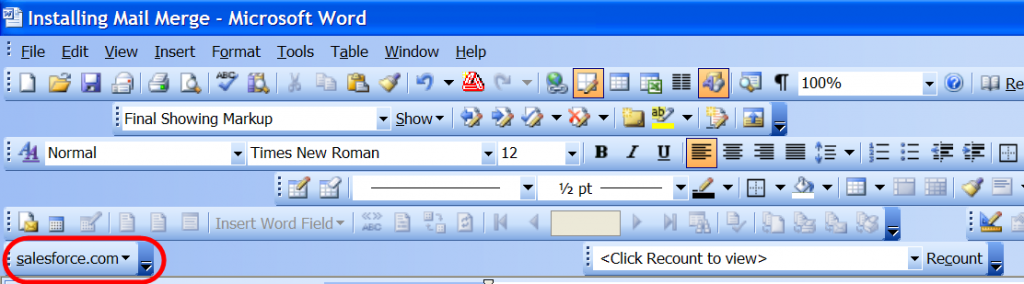

New toolbar option

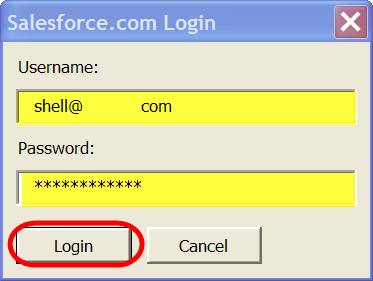

When you click the option – select “Log In”:

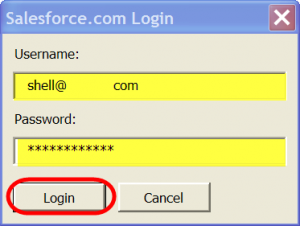

Log In Username Password

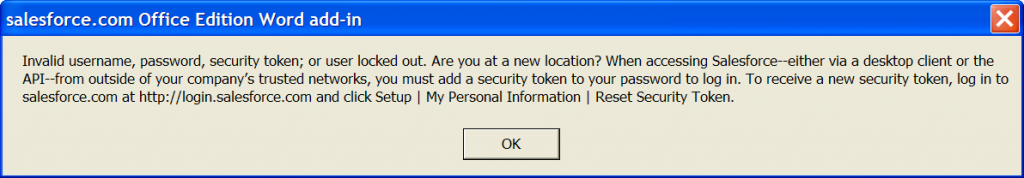

Need Token

To login you’ll need the following:

  • User Name (email that you use to login to salesforce)
  • Password:
  • Security Token:

To get your security token you’ll need to go to Setup > Personal Setup > My Personal Information > Reset My Security Token

Reset Token

Check the email account associated with your account. You’ll receive an email with the Token and instruction on how to use the token. Basically, if your password is "myPassword" and your security token is "XXXXXXX", you will enter "myPasswordXXXXXXX" into the password window.

Login with token

Once logged in, if you go to the Salesforce menu, you can now select fields that will be used to merge Salesforce data into your Word Document:

Insert Mail Merge Field

You will then see a field picker interface. First you pick the Object on the left pane, then any of the fields available on that Object from the right pane:

Select Mail Merge field

For example if you wanted to insert the Billing City into this sentence, you would highlight the words Billing City and then use the wizard to insert the mail merge field so it would look like this:

For example if you wanted to insert the Billing City into this sentence, you would highlight the words «ACCOUNT_BILLINGCITY» and then use the wizard to insert the mail merge field so it would look like this…

Repeat the process of selecting and inserting mail merge fields as needed until your document is complete. Here is an example of a template with many mail merge fields ready to upload into Salesforce:

Multiple Mail Merge Fields

Once your Word Document is saved, you’ll need to upload the template into Salesforce.

Go to Setup > Administration Setup > Communication Templates > Mail Merge Templates, then in the pane on the right, click “New Template”

Add New Template

Create a name for your new template, browse to the file on you local drive or desktop, and click the “Save” button.

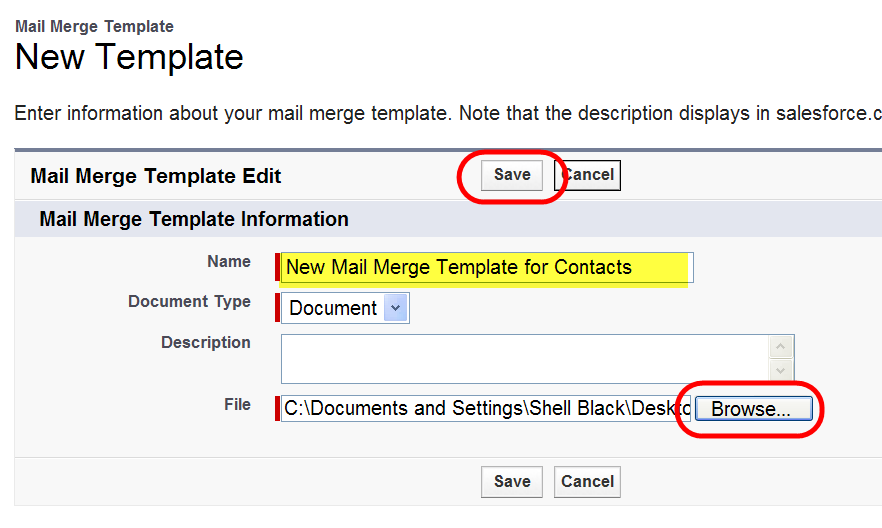

Upload New Template

Your template is now ready for use.

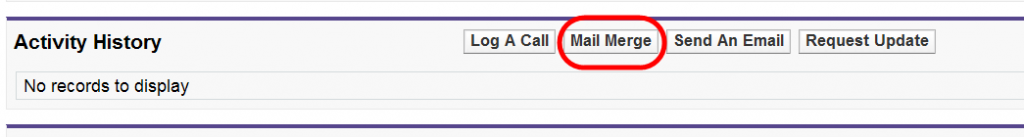

You create a Mail Merge document by navigating in Salesforce to the appropriate record in Salesforce, scrolling down to the Activities History related list section for that record and clicking the “Mail Merge” button.

Mail Merge Related List

Click the “Mail Merge” button and select the appropriate contact in Step 1 (it should default to the right Contact if that was the record you were viewing when you kicked off the Mail Merge)

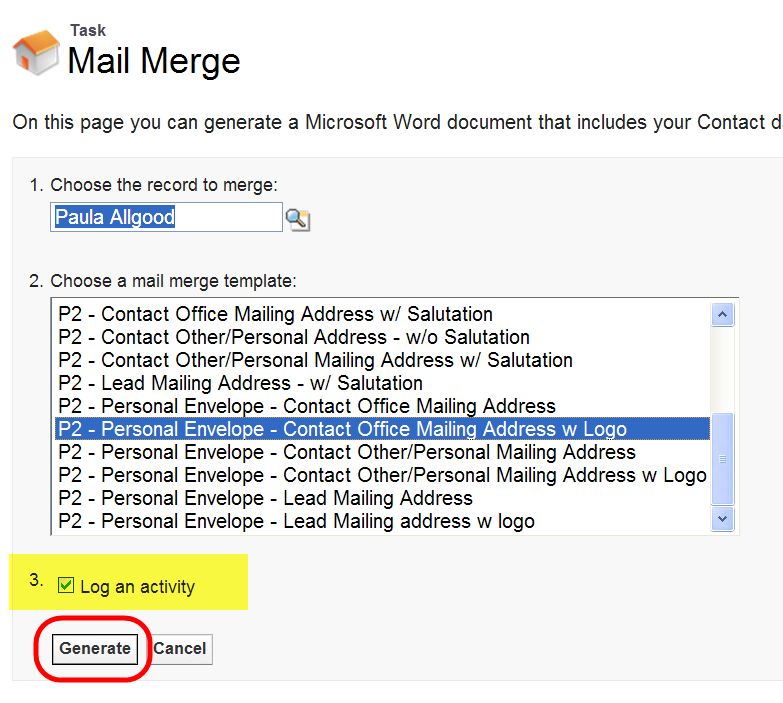

Create Mail Merge

In Step 2 select the template

In Step 3 you have the option of recording the Mail Merge as an activity against the record (recommended)

Then click the “Generate” button…

If in Step 3 you selected to log an activity, you will see a screen like this – click “Save”:

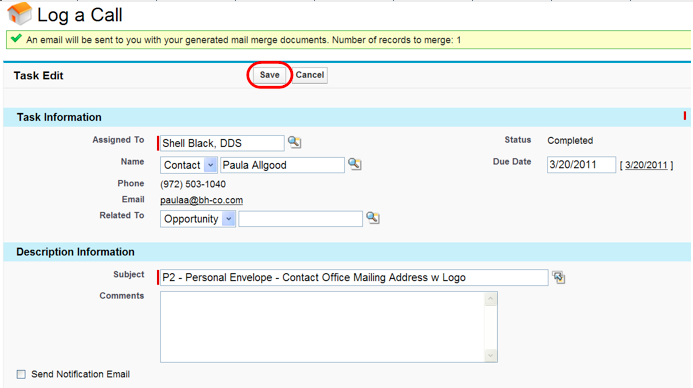

Activity Logged

That’s it! In most cases MS Word will fire-up and you can see the Mail Merge.

Sometimes the document will be emailed to you by Salesforce.

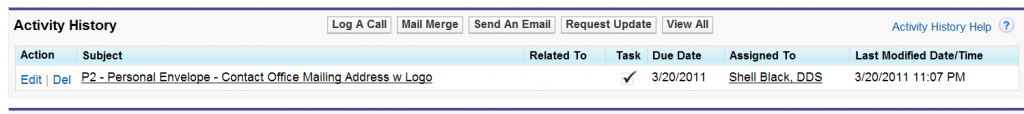

Here is an example of the Mail Merge activity logged by Salesforce:

Activity Logged

Learn about the Mass Mail Merge feature with this tutorial.


The Mail Merge function only pulls data down into MS Word for the Record you are viewing when you create a mail merge. For example, if you are creating a Mail Merge from a Contact record, you cannot pull information from the Account in the same operation.

Also Mail Merge seems to only work with Internet Explorer (as it relies on Active X). I have not found a solution thus far for Mac users. However, you can use a Mac with the Mass Mail Merge feature – go figure.
